Bristol_Jonesey
Max Output Level: 0 dBFS
- Total Posts : 16775
- Joined: 2007/10/08 15:41:17
- Location: Bristol, UK
- Status: offline
Couple of problems / issues
Firstly, I'd like someone to try this and see what happens. - Insert BFD as a multi audio output synth
- Insert a drum map - any old map will do

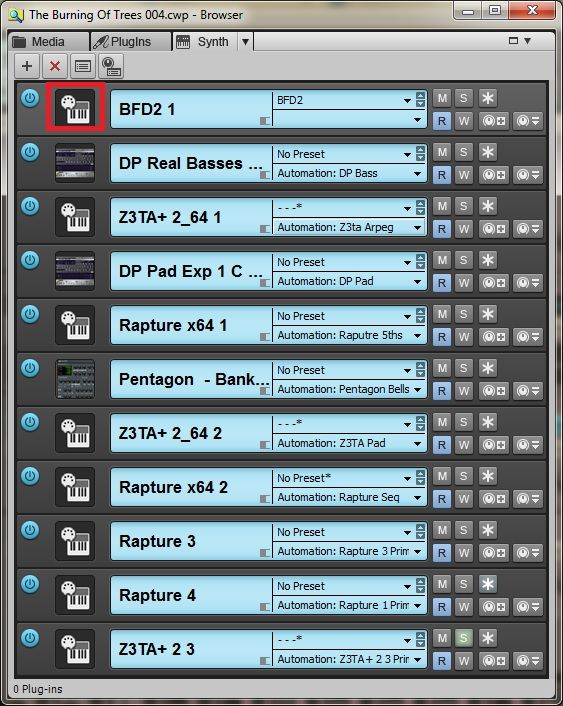

Now try and open the BFD GUI by double clicking the midi icon on the midi track. For me, the only way BFD will open is by switching the output from the Drum Map to BFD and then double clicking the icon This leads me onto my 2nd problem, with the synth rack The icon I've highlighted in the screenshot does NOT appear on all of my projects. (this is the other way of opening up a synths GUI) I'm not aware of any setting that could cause this, so does anyone have any idea why this should be missing? Thanks, and Happy New Year!!  Edit to add: I knew there was something else  Try inserting any Pad from Dimension Pro and record a long, sustained note or 3 Now insert a series of tempo changes to encompass the note and playback. On my system, I get a rhythmic series of ticks where the tempo changes occur and the ticking sound stops when the final tempo change is reached. Bouncing the track down does nothing to cure this. The only workaround I can find is to use a different synth - the old Pentagon works perfectly so again, any ideas?
post edited by Bristol_Jonesey - 2013/12/30 09:54:39
CbB, Platinum, 64 bit throughoutCustom built i7 3930, 32Gb RAM, 2 x 1Tb Internal HDD, 1 x 1TB system SSD (Win 7), 1 x 500Gb system SSD (Win 10), 2 x 1Tb External HDD's, Dual boot Win 7 & Win 10 64 Bit, Saffire Pro 26, ISA One, Adam P11A,
|
brundlefly
Max Output Level: 0 dBFS
- Total Posts : 14250
- Joined: 2007/09/14 14:57:59
- Location: Manitou Spgs, Colorado
- Status: offline
Re: Couple of problems / issues
2013/12/30 10:50:33
(permalink)
Drum maps break the link between the MIDI track icon and the synth GUI because the map could be pointing to many different ports/synths, and SONAR would hav eno way of knowing which one you want to open. You can get at the synth GUI from the track icon in the audio track hosting the synths output or via the synth tab in the Browser.
The icon you're referring to is for Simple Instruments where the MIDI and Audio tracks for a synth are combined. If you have separate MIDI tracks and Synth tracks (audio tracks with a synth assigned as input), you won't have that icon with the DIN plug on top of the synth keyboard. You would have to split a Simple Instrument track to be able to assign the output of the MIDI to a drum map so that would explain why you don't have one.
Not sure about the click with tempo changes, but it might be that the particular patch has a tempo-synced element. It's technically difficult to get a sounding waveform with rhythmic elements to follow a tempo change without creating a discontinuity in the waveform that manifests as noise.
SONAR Platinum x64, 2x MOTU 2408/PCIe-424 (24-bit, 48kHz) Win10, I7-6700K @ 4.0GHz, 24GB DDR4, 2TB HDD, 32GB SSD Cache, GeForce GTX 750Ti, 2x 24" 16:10 IPS Monitors
|
bvideo
Max Output Level: -58 dBFS
- Total Posts : 1707
- Joined: 2006/09/02 22:20:02
- Status: offline
Re: Couple of problems / issues
2013/12/30 11:07:56
(permalink)
The ticks at tempo changes are coming from a tempo-based effect, probably embedded in the dimension patch.
|
Bristol_Jonesey
Max Output Level: 0 dBFS
- Total Posts : 16775
- Joined: 2007/10/08 15:41:17
- Location: Bristol, UK
- Status: offline
Re: Couple of problems / issues
2013/12/30 11:25:39
(permalink)
brundlefly
Drum maps break the link between the MIDI track icon and the synth GUI because the map could be pointing to many different ports/synths, and SONAR would hav eno way of knowing which one you want to open. You can get at the synth GUI from the track icon in the audio track hosting the synths output or via the synth tab in the Browser. Yep, I'm aware of this and have been moaning about it for several versions, but in previous versions I could always double click the Midi icon to open up the synth attached to that particular track (how else could I have ever edited BFD considering I ALWAYS use a drum map?)
The icon you're referring to is for Simple Instruments where the MIDI and Audio tracks for a synth are combined. If you have separate MIDI tracks and Synth tracks (audio tracks with a synth assigned as input), you won't have that icon with the DIN plug on top of the synth keyboard. You would have to split a Simple Instrument track to be able to assign the output of the MIDI to a drum map so that would explain why you don't have one.
I never use SIT's, split Midi + Audio have always worked perfectly well for me. The icons shown on the screenshot above are all from split Midi/Audio synths
Not sure about the click with tempo changes, but it might be that the particular patch has a tempo-synced element. It's technically difficult to get a sounding waveform with rhythmic elements to follow a tempo change without creating a discontinuity in the waveform that manifests as noise.
Now that's given me something to check out, thanks!
CbB, Platinum, 64 bit throughoutCustom built i7 3930, 32Gb RAM, 2 x 1Tb Internal HDD, 1 x 1TB system SSD (Win 7), 1 x 500Gb system SSD (Win 10), 2 x 1Tb External HDD's, Dual boot Win 7 & Win 10 64 Bit, Saffire Pro 26, ISA One, Adam P11A,
|
brundlefly
Max Output Level: 0 dBFS
- Total Posts : 14250
- Joined: 2007/09/14 14:57:59
- Location: Manitou Spgs, Colorado
- Status: offline
Re: Couple of problems / issues
2013/12/30 11:37:26
(permalink)
Bristol_Jonesey
I never use SIT's, split Midi + Audio have always worked perfectly well for me. The icons shown on the screenshot above are all from split Midi/Audio synths
Oops. Got my icons mixed up. The one with only the keyboard is the Simple Instrument. So what icon do you have on audio tracks with synth inputs? In any case, I think you're mistaken about ever having been able to open synths by the icon on MIDI tracks pointing to drum maps. This has never worked for the reason I stated.
SONAR Platinum x64, 2x MOTU 2408/PCIe-424 (24-bit, 48kHz) Win10, I7-6700K @ 4.0GHz, 24GB DDR4, 2TB HDD, 32GB SSD Cache, GeForce GTX 750Ti, 2x 24" 16:10 IPS Monitors
|
Bristol_Jonesey
Max Output Level: 0 dBFS
- Total Posts : 16775
- Joined: 2007/10/08 15:41:17
- Location: Bristol, UK
- Status: offline
Re: Couple of problems / issues
2013/12/30 14:10:34
(permalink)

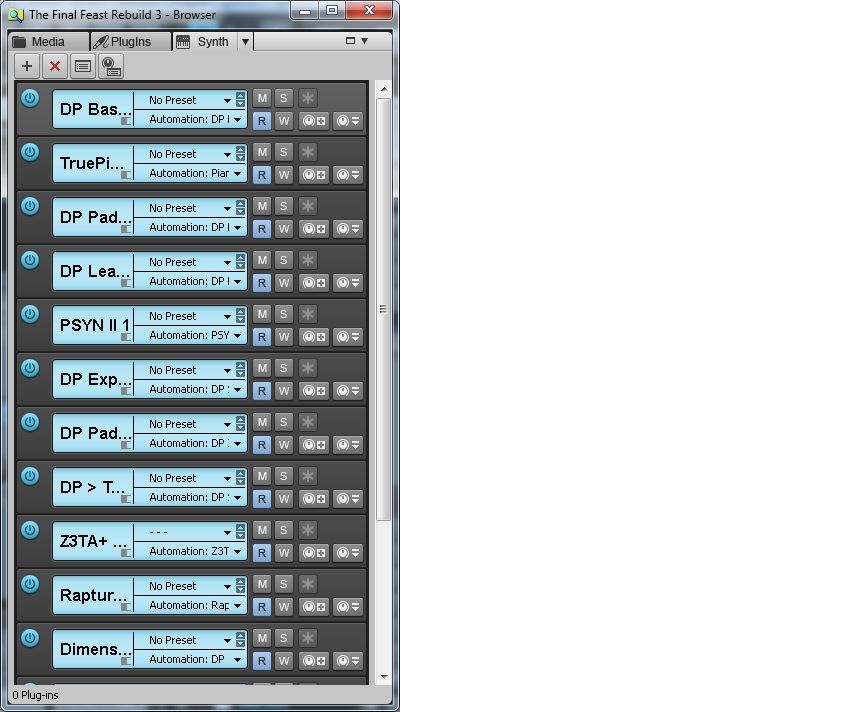

Dave, the problem is I have NO icon in the synth rack, as shown here:  Consequently, the only way I can open up the GUI is to first assign the midi track output to BFD rather than the drum map, open it up, do what I need to do and then re-assign the output. It's a bit of a pain. Both screen shots I've posted are from X3D, but on different machines and different projects. So I need to determine if it's machine specific or project specific
post edited by Bristol_Jonesey - 2013/12/30 14:20:57
CbB, Platinum, 64 bit throughoutCustom built i7 3930, 32Gb RAM, 2 x 1Tb Internal HDD, 1 x 1TB system SSD (Win 7), 1 x 500Gb system SSD (Win 10), 2 x 1Tb External HDD's, Dual boot Win 7 & Win 10 64 Bit, Saffire Pro 26, ISA One, Adam P11A,
|
Bristol_Jonesey
Max Output Level: 0 dBFS
- Total Posts : 16775
- Joined: 2007/10/08 15:41:17
- Location: Bristol, UK
- Status: offline
Re: Couple of problems / issues
2013/12/30 14:59:48
(permalink)
It's machine specific.
It displays correctly on my secondary DAW but not on my main machine.
So what's different? Other than the fact that my main machine was a purpose built one with a higher spec than the non-DAW, which I built myself in 2009?
CbB, Platinum, 64 bit throughoutCustom built i7 3930, 32Gb RAM, 2 x 1Tb Internal HDD, 1 x 1TB system SSD (Win 7), 1 x 500Gb system SSD (Win 10), 2 x 1Tb External HDD's, Dual boot Win 7 & Win 10 64 Bit, Saffire Pro 26, ISA One, Adam P11A,
|
scook
Forum Host
- Total Posts : 24146
- Joined: 2005/07/27 13:43:57
- Location: TX
- Status: offline
Re: Couple of problems / issues
2013/12/30 15:07:17
(permalink)
Can you right click and load or reset the icons? Are the track icons where the folder preference is set?
|
brundlefly
Max Output Level: 0 dBFS
- Total Posts : 14250
- Joined: 2007/09/14 14:57:59
- Location: Manitou Spgs, Colorado
- Status: offline
Re: Couple of problems / issues
2013/12/30 15:16:51
(permalink)
For a workaround to get the GUI, you can right-click and choose Synth Properties. You might also try re-personalizing SONAR with Shift+click to launch.
SONAR Platinum x64, 2x MOTU 2408/PCIe-424 (24-bit, 48kHz) Win10, I7-6700K @ 4.0GHz, 24GB DDR4, 2TB HDD, 32GB SSD Cache, GeForce GTX 750Ti, 2x 24" 16:10 IPS Monitors
|
Bristol_Jonesey
Max Output Level: 0 dBFS
- Total Posts : 16775
- Joined: 2007/10/08 15:41:17
- Location: Bristol, UK
- Status: offline
Re: Couple of problems / issues
2013/12/30 15:21:10
(permalink)
As ever Steve, you're a genius.
Right clicking worked. Resetting initially did nothing, but as soon as I chose LOAD icon, and just picked any old bitmap in Sonar's Track Icons folder, the rest of them appeared normally.
Thanks indeedy sir!!!
CbB, Platinum, 64 bit throughoutCustom built i7 3930, 32Gb RAM, 2 x 1Tb Internal HDD, 1 x 1TB system SSD (Win 7), 1 x 500Gb system SSD (Win 10), 2 x 1Tb External HDD's, Dual boot Win 7 & Win 10 64 Bit, Saffire Pro 26, ISA One, Adam P11A,
|
scook
Forum Host
- Total Posts : 24146
- Joined: 2005/07/27 13:43:57
- Location: TX
- Status: offline
Re: Couple of problems / issues
2013/12/30 15:23:24
(permalink)
Just lucky. Glad it worked for you.
|
