Missing MIDI Ports?

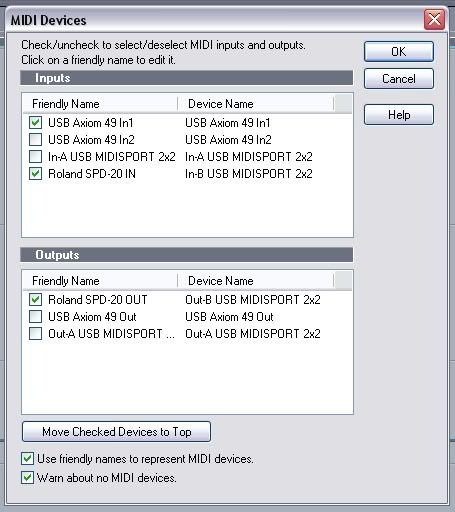

I just reformatted my PC and re-installed Sonar 8.3.1 this past week. Everything is working fine but when I open a project or start a new one I get the Missing MIDI Port pop-up.  And here are the settings under my MIDI Devices.  Any ideas on what I'm missing or forgetting to do? Mike
Sonar X3 ~ Scarlett 18i6 ~ Home Build DAW
GA-Z77X-UD5H
Intel i7 3770k 4.2GHz
32GB RAM Crucial Ballistix Elite (4x8)
2x Samsung 250GB SSD
1TB WD Black HDD @ 7200RPM 6Gb/s 64MB
Corsair H80i Liquid cooler
Noctua Silent Fans ~ 3x120mm ~ 1x140mm
Seasonic Platinum 760w PSU
Windows 7 Pro 64Bit.
|
farrarbc
Max Output Level: -78 dBFS
- Total Posts : 646
- Joined: 2005/12/05 20:34:50
- Location: USA
- Status: offline
RE: Missing MIDI Ports?
2009/07/12 12:52:01
(permalink)
Should you have your Roland checked in Output dialog as an output to enable it?
--BF Sonar X1 Producer Expanded Presonus StudioLive 16.4.2 MoonLight Handgrenade DAW Win7 64bit Intel i7-980 Gigabyte G1 Guerilla 24GB Corsair DDR3 RAM (4) 320 GB Seagates
|
ew
Max Output Level: -57 dBFS
- Total Posts : 1837
- Joined: 2004/01/27 21:24:49
- Location: Eagan, MN
- Status: offline
RE: Missing MIDI Ports?
2009/07/12 12:56:42
(permalink)
1) Try checking the Midisport's other ports as well.
2) If you're using XP, turn off power management to the root hubs.
ew
|
DW_Mike
Max Output Level: -6 dBFS
- Total Posts : 6907
- Joined: 2006/11/29 18:06:40
- Location: The arm-pit of the good 'ol US...New Jersey
- Status: offline
RE: Missing MIDI Ports?
2009/07/12 14:30:46
(permalink)
Thanks EW.
I have tried the above suggestions and everything works fine. Recording and playback MIDI works through both A & B ports with no problem. But the window still pops up every time I open or start a project.
Hmmm!
Mike
Sonar X3 ~ Scarlett 18i6 ~ Home Build DAW
GA-Z77X-UD5H
Intel i7 3770k 4.2GHz
32GB RAM Crucial Ballistix Elite (4x8)
2x Samsung 250GB SSD
1TB WD Black HDD @ 7200RPM 6Gb/s 64MB
Corsair H80i Liquid cooler
Noctua Silent Fans ~ 3x120mm ~ 1x140mm
Seasonic Platinum 760w PSU
Windows 7 Pro 64Bit.
|
jim y
Max Output Level: -76 dBFS
- Total Posts : 721
- Joined: 2003/11/08 13:16:43
- Location: The Middle of Wales.
- Status: offline
RE: Missing MIDI Ports?
2009/07/12 16:26:43
(permalink)
I think the "friendly name" of one of your midisports is wrong - It thinks it's a Roland & that's not the device the project is looking for - hence the warning. It's only the friendly name that's wrong which may be why the project actually plays out of the correct port.
Jim
|
DW_Mike
Max Output Level: -6 dBFS
- Total Posts : 6907
- Joined: 2006/11/29 18:06:40
- Location: The arm-pit of the good 'ol US...New Jersey
- Status: offline
RE: Missing MIDI Ports?
2009/07/12 18:10:30
(permalink)
Yeah I thought that too but I was getting the pop up before I changed the name to "Roland SPD-20 Out". I changed the name to see if it would make a difference.
Mike
Sonar X3 ~ Scarlett 18i6 ~ Home Build DAW
GA-Z77X-UD5H
Intel i7 3770k 4.2GHz
32GB RAM Crucial Ballistix Elite (4x8)
2x Samsung 250GB SSD
1TB WD Black HDD @ 7200RPM 6Gb/s 64MB
Corsair H80i Liquid cooler
Noctua Silent Fans ~ 3x120mm ~ 1x140mm
Seasonic Platinum 760w PSU
Windows 7 Pro 64Bit.
|
John
Forum Host
- Total Posts : 30467
- Joined: 2003/11/06 11:53:17
- Status: offline
RE: Missing MIDI Ports?
2009/07/13 04:53:50
(permalink)
Friendly names are only what you want to call the port and has no effect on whether the the port is recognized. In the nice pictures all the ports are not checked. Could this be the cause for the missing port dialog? Also if all is well concerning that you can use the port there is a check for not showing that dialog if you don't want it. I can't say I fully follow the issue as described. Color me confused. None the less you have many of your available ports unchecked.
|
CARLOMAGNO74
Max Output Level: -90 dBFS
- Total Posts : 1
- Joined: 2009/09/25 05:57:22
- Status: offline
Re: RE: Missing MIDI Ports?
2009/09/25 06:04:56
(permalink)
This happened to me when I changed my MIDI interface and the Normal template or any project assigned the old MIDI device as an output for a MIDI channel. I just assigned the MIDI channels to the new device, and no more Missing evice error
Hope this help!
|
ducatibruce2
Max Output Level: -79 dBFS
- Total Posts : 557
- Joined: 2008/10/05 09:04:31
- Location: Tasdemonia, Oz
- Status: offline
Re: RE: Missing MIDI Ports?
2009/09/25 09:07:19
(permalink)
Strangely enough I've been having the exact same issue recently in S8.3.1 & 8.5.1, on the same port on the same device (port B, Midisport 2x2). A reboot of the system has cleared the issue every time so far, I've no idea what caused it to start happening, but it's only been over the last 6-8 weeks. Win XP SP3 here edit to add: Midisport driver v4.3.00 & the midisport shows as connected in Device Manager when the probelm occurs (both A+B ports are turned on in my DAW)
post edited by ducatibruce2 - 2009/09/25 09:13:21
S8.5.3PE & X1d P Exp & X2P, Q6600 @3Ghz, 4GB DDR2, XP SP3 With Knobs: 2 x Yamaha i88x mlan (ASIO), RS7000, Motif ESR, Roland SI24, VSynth XT, Varios, Fantom XR, JunoD, HPD10, Korg PadKontrol No knobs: P5, DimPro, Rapture, Z3ta+, IK stuff, ReCycle, Komplete8
|
Fog
Max Output Level: 0 dBFS
- Total Posts : 12302
- Joined: 2008/02/27 21:53:35
- Location: UK
- Status: offline
Re: RE: Missing MIDI Ports?
2009/09/25 09:56:41
(permalink)
just a thought, the midi sport / axiom are both m-audio products..
maybe an issue with the driver and it being multi-client.. as I'd take a punt that the code for the axioms midi was based on the earlier midisport code
|
brundlefly
Max Output Level: 0 dBFS
- Total Posts : 14250
- Joined: 2007/09/14 14:57:59
- Location: Manitou Spgs, Colorado
- Status: offline
RE: Missing MIDI Ports?
2009/09/25 10:09:52
(permalink)
Recording and playback MIDI works through both A & B ports with no problem. But the window still pops up every time I open or start a project. I thought this was maybe related to the new dynamic port detection feature when I first saw it reported in 8.5, but if you are seieng it in 8.3.1, it must be something else. Have you tried changing the track assignment(s) to different ports, and then reassigning to the problem port (maybe with a save in between)?
SONAR Platinum x64, 2x MOTU 2408/PCIe-424 (24-bit, 48kHz) Win10, I7-6700K @ 4.0GHz, 24GB DDR4, 2TB HDD, 32GB SSD Cache, GeForce GTX 750Ti, 2x 24" 16:10 IPS Monitors
|
