Pitch Bend Sticking in Sonar X1
Hi Folks! I`m using Sonar X1 and a Korg NanoKey2 and I couple of soft synth tracks - using Sound Centre - that have a sticking pitch bend. I have to play the track and hit the pitch down button to get it to the right pitch. I`ve tried shutting down the computer, taking the NanoKey in and out but nothing works. I did have a pitch bend in there at one point but I can`t see any signs of it in the event list. Any ideas?
|
tprochera
Max Output Level: -90 dBFS
- Total Posts : 16
- Joined: 2013/10/09 15:31:28
- Status: offline
Re: Pitch Bend Sticking in Sonar X1
2013/10/09 17:50:40
(permalink)
☼ Best Answerby tprochera 2013/10/09 17:50:51
Got it! The pitch bend still wasn't showing up in the event list but I tracked down the measure where the problem was starting and deleted it and that seemed to work!
|
konradh
Max Output Level: -42 dBFS
- Total Posts : 3325
- Joined: 2006/01/16 16:07:06
- Status: offline
Re: Pitch Bend Sticking in Sonar X1
2013/10/10 15:40:03
(permalink)
I always put a Pitch Wheel = 0 and a Controller 121 = 0 at the first of every MIDI track. In Preferences, I have Sonar set to search back for the most recent controller events. This ensures that, if nothing else, I always start a track with no pitch bend and all the continuous controllers reset. By the way, even though it is not part of your question, I find that Sonar inserts WAY too many pitch bend events. It inserts 8 or 16 per clock tick, which is ridiculous. If I insert pitch bends from, for example, -4096 to 0 over the length of an 1/8 note, I have to highlight that range and run the Thin Pitch Wheel CAL 2 or 3 times (with a vlaue of 2 each time). This is a pain. Some other notes: - That CAL program is supposed to ignore 0, 4096, -4096, 8191, and -8192 but I don't think it does. After highlighting the range, I always go into Event List and Control Click those values to deselect before running the CAL.
- When you insert a range of Pitch Bend values, Sonar always puts an extra one at the end. For example, if you insert -4096 to 0, at the end of the event list, after the zero, you will see a random value like -8 or something. If you add events from 0 to 8191, after the 8191, you might see 8174, or something. There is always one last value that is slightly off from the specified end point and you have to delete that event or you will be out of tune.
- Don't forget to add a zero Pitch Bend event a couple of beats after you pitch bending so you synth is reset.
All the above sounds minor, but when you are creating a lead guitar part or steel guitar part that goes across four instances (so you can bend strings individually), all of that extra work gets annoying—and it is easy to make mistakes.
Konrad Current album and more: http://www.themightykonrad.com/ Sonar X1d Producer. V-Studio 700. PC: Intel i7 CPU 3.07GHz, 12 GB RAM. Win 7 64-bit. RealGuitar, RealStrat, RealLPC, Ivory II, Vienna Symphonic, Hollywood Strings, Electr6ity, Acoustic Legends, FabFour, Scarbee Rick/J-Bass/P-Bass, Kontakt 5. NI Session Guitar. Boldersounds, Noisefirm. EZ Drummer 2. EZ Mix. Melodyne Assist. Guitar Rig 4. Tyros 2, JV-1080, Kurzweil PC2R, TC Helicon VoiceWorks+. Rode NT2a, EV RE20. Presonus Eureka. Rokit 6s.
|
Bristol_Jonesey
Max Output Level: 0 dBFS
- Total Posts : 16775
- Joined: 2007/10/08 15:41:17
- Location: Bristol, UK
- Status: offline
Re: Pitch Bend Sticking in Sonar X1
2013/10/11 04:48:27
(permalink)
Great tips there Konradh.
CbB, Platinum, 64 bit throughoutCustom built i7 3930, 32Gb RAM, 2 x 1Tb Internal HDD, 1 x 1TB system SSD (Win 7), 1 x 500Gb system SSD (Win 10), 2 x 1Tb External HDD's, Dual boot Win 7 & Win 10 64 Bit, Saffire Pro 26, ISA One, Adam P11A,
|
squo
Max Output Level: -90 dBFS
- Total Posts : 44
- Joined: 2010/04/24 00:51:09
- Status: offline
Re: Pitch Bend Sticking in Sonar X1
2013/10/19 11:47:03
(permalink)
Having similar problem with key not resetting after a pitch bend... seems to only happen on my bass track (using the TTS 1 synth), every time I stop playback and restart it the pitch of the bass track moves and I have to jiggle the pitch wheel on my keyboart to set it to the right key again. Konrad, how do I add a zero Pitch Bend event a couple of beats after you pitch bending so you synth is reset... can you explain how to do it ?
|
Bristol_Jonesey
Max Output Level: 0 dBFS
- Total Posts : 16775
- Joined: 2007/10/08 15:41:17
- Location: Bristol, UK
- Status: offline
Re: Pitch Bend Sticking in Sonar X1
2013/10/19 12:21:20
(permalink)

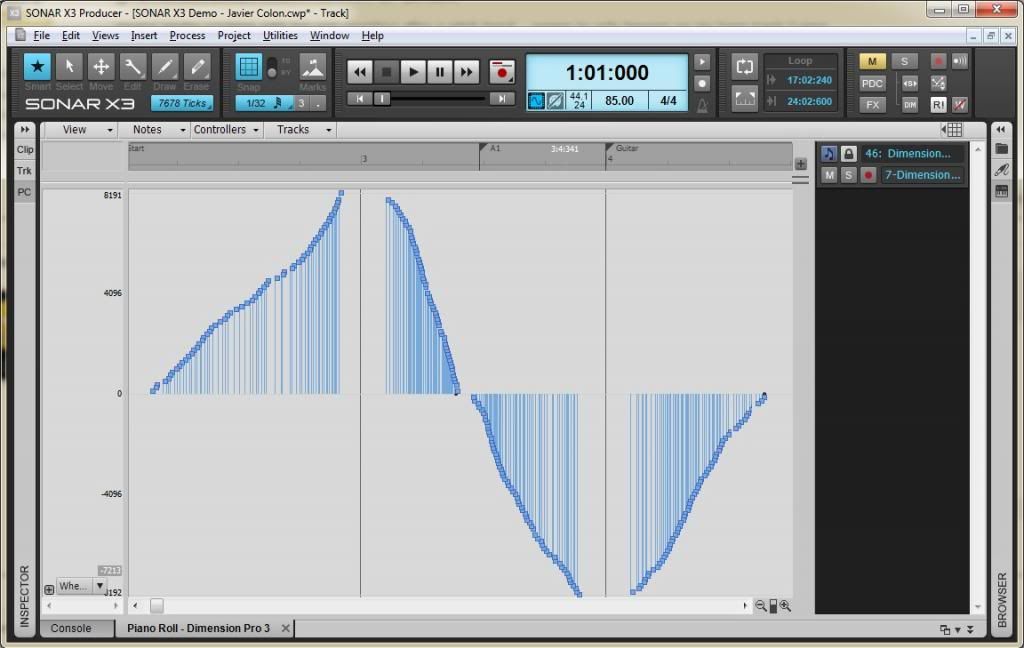

Pitch bend data range from 0 to 8191 for pitch raising and from 0 to -8192 for pitch lowering. In order to reset the synth bender, you need to insert a node at zero - which you can just make out as a black spot in the screenshot below
