Pro Channel not working (Solved by turning on Global button : post #6)

Author
tomixornot
Max Output Level: -58.5 dBFS
  • Total Posts : 1674
  • Joined: 2011/03/05 11:31:26
  • Status: offline
2014/11/16 01:49:19 (permalink)

Pro Channel not working (Solved by turning on Global button : post #6)

First I was having this problem
http://forum.cakewalk.com/Weird-problem-mixing-half-way-many-tracks-gone-silent-m3117615.aspx

It was solved, not not knowing why.. and now all the Pro Channel is not working (compressor / eq / etc.. the blue button is engaged, but the meter is not moving) Moving the PC compressor output level to min / max did not affect the sound at all..
post edited by tomixornot - 2014/11/17 01:42:36

Albert


i7 2600K @ 3.40GHz / MB Intel DP67BG / 16GB Ram
- ADATA 250GB SSD (Boot)
- Samsung Spinpoint F1 1TB HDD (Samples)
Audio interface : Motu 828 MK ii

i7 6700K @ 4.00GHz / MB Asrock Z170 / 16GB Ram
- Samsung EVO 850 120GB / 500 GB SSD

Audio interface : Roland Quad Capture

Win 10 Pro / Sonar Platinum
#1

8 Replies Related Threads

    tomixornot
    Max Output Level: -58.5 dBFS
    • Total Posts : 1674
    • Joined: 2011/03/05 11:31:26
    • Status: offline
    Re: Pro Channel not working... 2014/11/16 02:01:11 (permalink)
    I'm thinking of exporting all the audio out and throwing away the existing project and start a new.

    What is the best way to export individual track's audio clean, without the sound being effected by the Pro Channel, etc.. I don't mind using pen to copy down each and every setting track by track.. At this moment, I really don't know if the PC is effecting the sound at all..

    Albert


    i7 2600K @ 3.40GHz / MB Intel DP67BG / 16GB Ram
    - ADATA 250GB SSD (Boot)
    - Samsung Spinpoint F1 1TB HDD (Samples)
    Audio interface : Motu 828 MK ii

    i7 6700K @ 4.00GHz / MB Asrock Z170 / 16GB Ram
    - Samsung EVO 850 120GB / 500 GB SSD

    Audio interface : Roland Quad Capture

    Win 10 Pro / Sonar Platinum
    #2
    tomixornot
    Max Output Level: -58.5 dBFS
    • Total Posts : 1674
    • Joined: 2011/03/05 11:31:26
    • Status: offline
    Re: Pro Channel not working... 2014/11/16 02:31:01 (permalink)

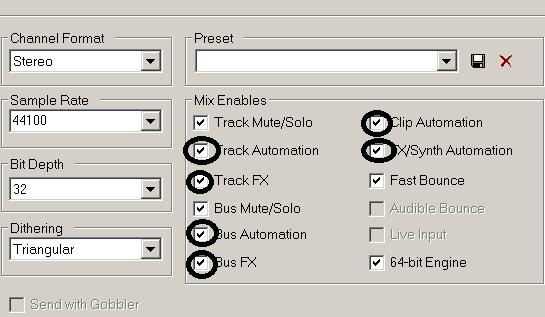

    Is this the correct way to export a track without using any effect (no PC, no effect bin, no automation).

    Edit : I mean disabling the ones in circled.

    Thanks.



    Albert


    i7 2600K @ 3.40GHz / MB Intel DP67BG / 16GB Ram
    - ADATA 250GB SSD (Boot)
    - Samsung Spinpoint F1 1TB HDD (Samples)
    Audio interface : Motu 828 MK ii

    i7 6700K @ 4.00GHz / MB Asrock Z170 / 16GB Ram
    - Samsung EVO 850 120GB / 500 GB SSD

    Audio interface : Roland Quad Capture

    Win 10 Pro / Sonar Platinum
    #3
    Leadfoot
    Max Output Level: -47 dBFS
    • Total Posts : 2817
    • Joined: 2011/04/26 11:08:38
    • Location: Indiana
    • Status: offline
    Re: Pro Channel not working... 2014/11/16 06:25:51 (permalink)
    Have you tried disabling the plugins in the fx bin in your master buss? Every once in a while Liquid Mix will hang up in my master fx bin, and it won't let audio through.
    #4
    Anderton
    Max Output Level: 0 dBFS
    • Total Posts : 14070
    • Joined: 2003/11/06 14:02:03
    • Status: offline
    Re: Pro Channel not working... 2014/11/16 10:13:47 (permalink)
    You probably don't need to export. I assume the issue happens only when the CA-2A or Concrete Limiter is present. There is a known bug that is intermittent and relatively rare, and I believe a fix is forthcoming.

    The simplest workaround is to insert a new instance of the plug-in, duplicate its settings, then remove the old instance. That should let you get back to work. You can also render the audio with the ProChannel effect, which takes the effect out of the picture.

    Of course, the easiest way to make a bug disappear is to try to create a project where it's reproducible

    The first 3 books in "The Musician's Guide to Home Recording" series are available from Hal Leonard and http://www.reverb.com. Listen to my music on http://www.YouTube.com/thecraiganderton, and visit http://www.craiganderton.com. Thanks!
    #5
    tomixornot
    Max Output Level: -58.5 dBFS
    • Total Posts : 1674
    • Joined: 2011/03/05 11:31:26
    • Status: offline
    Re: Pro Channel not working... 2014/11/17 01:51:18 (permalink)
    Resolve this by trial and error, not knowing what the Global button is suppose to do.

    Problem #1 - many tracks gone silent
    - actually due to all the default Pro Channel track compressor output gone to min setting - not sure how this was done.
    - but only found this much later (after solving Problem #2) as I don't expect the output level to be set min and all the tracks was on narrow view.
    - This problem was solved temporary and wrongly by turning off the Global switch - but in doing so, it restores all the track volume.

    Problem #2 - All Pro Channel modules was not responding
    - solved by turning on each track's Global button.

    In summary, the only problem was some how many affected tracks default PC compressor was all turned to min.

    Question :

    What the Global button does. I've never even notice this button there (until now) and by opening some older projects I found that some were off and others were mainly on.

    Is there an action that can trigger all the default PC compressor to turn the output level to min at the same time ?

    Thanks!

    Albert


    i7 2600K @ 3.40GHz / MB Intel DP67BG / 16GB Ram
    - ADATA 250GB SSD (Boot)
    - Samsung Spinpoint F1 1TB HDD (Samples)
    Audio interface : Motu 828 MK ii

    i7 6700K @ 4.00GHz / MB Asrock Z170 / 16GB Ram
    - Samsung EVO 850 120GB / 500 GB SSD

    Audio interface : Roland Quad Capture

    Win 10 Pro / Sonar Platinum
    #6
    John
    Forum Host
    • Total Posts : 30467
    • Joined: 2003/11/06 11:53:17
    • Status: offline
    Re: Pro Channel not working... 2014/11/17 02:08:24 (permalink)
    The Global Button at the top of the prochannel strip turns it on or off, the whole strip. This is the strip not the modules. The modules can be turned on individually. One reason this is there is modules are often loaded by default and may or may not be wanted in the project. It also lets us A/B the PC. Its very handy.

    Best
    John
    #7
    tomixornot
    Max Output Level: -58.5 dBFS
    • Total Posts : 1674
    • Joined: 2011/03/05 11:31:26
    • Status: offline
    Re: Pro Channel not working... 2014/11/17 04:58:45 (permalink)
    Thanks John.

    Albert


    i7 2600K @ 3.40GHz / MB Intel DP67BG / 16GB Ram
    - ADATA 250GB SSD (Boot)
    - Samsung Spinpoint F1 1TB HDD (Samples)
    Audio interface : Motu 828 MK ii

    i7 6700K @ 4.00GHz / MB Asrock Z170 / 16GB Ram
    - Samsung EVO 850 120GB / 500 GB SSD

    Audio interface : Roland Quad Capture

    Win 10 Pro / Sonar Platinum
    #8
    Noel Borthwick [Cakewalk]
    Cakewalk Staff
    • Total Posts : 6475
    • Joined: 2003/11/03 17:22:50
    • Location: Boston, MA, USA
    • Status: offline
    Re: Pro Channel not working... 2014/11/17 08:05:38 (permalink)
    tomixornot
    Is there an action that can trigger all the default PC compressor to turn the output level to min at the same time ?


    Yes, you can do this by quickgrouping. There are 3 ways this could have happened that I can think of.

    - You had all tracks selected and while setting the compressor output level on one track accidentally held down the control key.
    - You had *no* tracks selected and while setting the output level held down control. (no tracks selected is treated as *all* in the case of quick grouping)
    - Your keyboard has a sticky control key that caused it to be engaged unexpectedly.


    Noel Borthwick
    Senior Manager Audio Core, BandLab
    My Blog, Twitter, BandLab Profile
    #9
