[Resolved] Trouble with MIDI Devices

Hi all,

I use two identical MIDI interfaces (MOTU MIDI Timepiece AV) and sometimes others too (e.g., NI Rig Kontrol 3) and find that Sonar occasionally loses or rearranges my MIDI Input and Output settings in Preferences > MIDI > Devices.  Sometimes, a device disappears.  Sometimes, perhaps after a restart, it comes back but has a new number assigned to it and all of the friendly port names are gone.  Other times, all of the ports on one interface or the other have simply been deselected.  Can anybody explain why this happens and how to prevent it?

Any assistance is greatly appreciated.

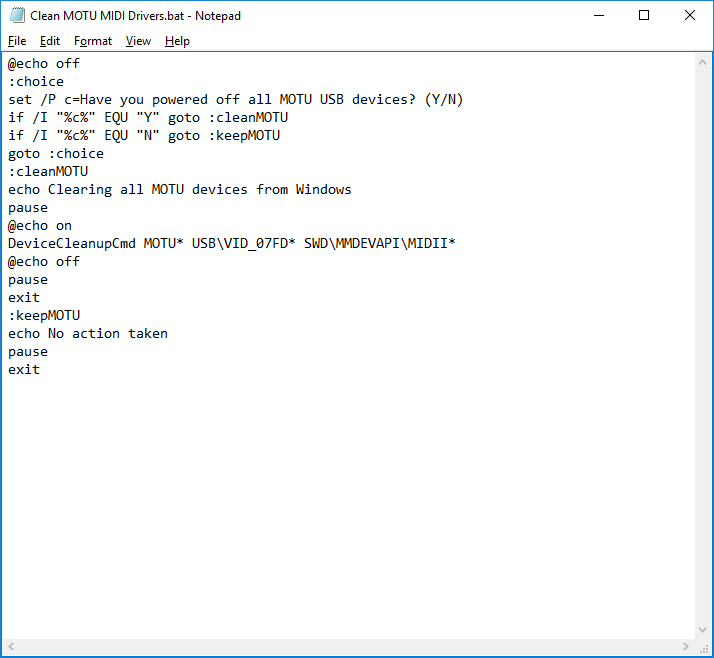

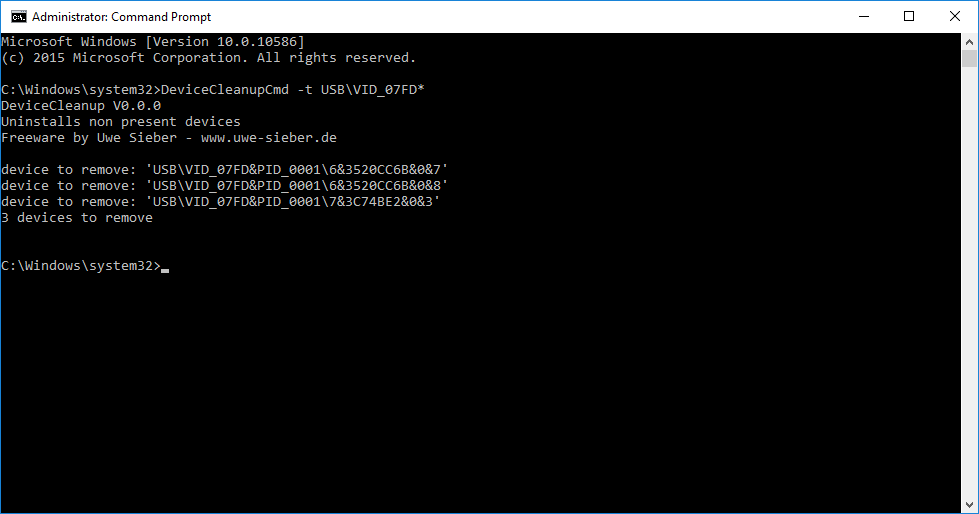

Edit:  This is not a Sonar problem but a Windows problem.  I've provided a workaround for this randomly recurring nuisance below.  Enjoy!

I use several different interfaces and have encountered this many times in the past It is is a an issue with windows seeing your midi interfaces as a new device rather than using the driver already assigned to them. It usually happens when hardware is plugged into a different usb port to it's original installation but there can be other factors as well. Your hardware will often show up as the device name with a secondary number next to it. There are a couple of steps to avoiding this.

1. Always plug your midi interfaces into the same USB port.

2. If you are using multiple interfaces, you can back up the ttseq.ini file in sonar where all of the midi input and output settings are stored. It is located @ users/[your username]/AppData/Roaming/Cakewalk/Sonar Platinum{or your version of Sonar). I use several different interfaces, so I have a backup for each configuration. With your devices connected, and the midi outputs ordered as you like them (this can be done under preferences>midi using the 'moved check devices to the top' setting. Once the outputs are correct, navigate to; users/[your username]/AppData/Roaming/Cakewalk/Sonar Platinum. Make a backup copy of ttseq.ini, and create a shortcut to where the file came from. Do this for each different hardware setup you use. Now when you want to switch hardware, all you need do is copy the backed up file to its original location and all of your ports will show up exactly as they did previously.

If you open the ttseq.ini file in a text editor, it is also possible to reorder not only the midi outputs , but the order midi inputs show up in Sonar as well. This is not as crucial as the outputs, which as you know all too well can mess with your projects!

FWIW, there are three other files at the same location that contain Sonar configuration information: AUD.ini, ctrlsurface.dat, and INSTRMAP.INI. If you back these up with each configuration as well, all of your audio, midi, control surfaces and external synths can be restored very quickly in case of any changes.

Thanks, guys!  Getting into and straightening out that TTSEQ.INI file appears to have helped - thank you! - but it wasn't exactly straightforward:

The first time I peeked at the file, the DeviceCount parameter values didn't add up - that is, I had 37 lines (numbered 1 to 37) and DeviceCount values of 38.  When I launched Sonar, my (minimal) changes were discarded.  So, I made some changes in Sonar to see what would happen to the INI file.

On the next peek, "0=Microsoft GS Wavetable Synth" had been added to each Device Map section, but placed before the DeviceCount parameter rather than with the list of devices.  Weird.  It probably doesn't matter but I moved it anyways.  I also renamed and reorganized my aliases and, this time, the changes stuck.

Another problem I was able to fix in TTSEQ.INI:  Two ports on my secondary MTPAV had disappeared.  I restored those lines manually to [AliasOutput] and restored the MaxOutPort parameter value to 15 (the default).  I don't know why it was at 13 - I never touched it.

When I launched Sonar again, all of my devices and ports were alive and well.  Better still, should this happen again, I'll know where to look.  I'm also going to be less reckless with my USB plugging.  Hopefully, if I plan my port usage and stick with it, things will stay in place.  We'll see.

Thanks a million!

Resort Records
I wonder if Gustabo and WDI are also onto something.  I don't always remember to power up my equipment racks before launching Sonar.  I mean, why charge up the whole studio if all you're doing is editing a Word document, right?  If this is indeed an issue, I can certainly plug my MIDI interfaces into an unswitched circuit, but I'm hoping Windows and Sonar are smart enough to keep those ports reserved when the devices aren't powered up.

Or, Bruce, I guess your solution #2 addresses this.  Sounds good - I might just implement your suggestion with a batch file to replace TTSEQ.INI, etc. with whichever hardware configuration I need.  Point and shoot.

Thanks again!

Glad you got it sorted David. You seem to have things well under control - a master of the ttseq!

Not powering up hardware every time you start your PC will not cause windows to reassign different drivers the next time you turn devices on as long as you stick with the same USB ports. Opening Sonar with hardware turned off can on occasion cause port reordering, but this is easily fixed now that you have your ttseq backup:)
