Sonitus compressor in X2 Essentil will not sidechain...
I have some problems with sidechaing using Sonitusfx compressor in Sonar X2 Essential. So after I load the Sonitus compressor (vst) in the effect bin of one of my tracks and I want to send another track to its sidechaing input, this input it will not show up in my tracks sends options. The compressor is working fine on the track on which was loaded but it only does it like a regular compressor. Its sidechaing inputs will not be displayed in other tracks sends option... Same problem with Sonitus gate (I just purchased the whole Sonitus suite). Does anybody know how I could make it work? My X2 is installed as 64 bit (on Win7), but this souldn't matter because other 32 bit effects are working fine... Thanks !
|
sharke
Max Output Level: 0 dBFS
- Total Posts : 13933
- Joined: 2012/08/03 00:13:00
- Location: NYC
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/02 18:34:54
(permalink)
Are you sure you didn't just miss it in the list? Sonar has a horrible way of listing send destinations that's messy and confusing when you're looking for a sidechain enabled plug. I know I had difficulty finding the correct one the first time I tried it, and I was convinced it wasn't there.
JamesWindows 10, Sonar SPlat (64-bit), Intel i7-4930K, 32GB RAM, RME Babyface, AKAI MPK Mini, Roland A-800 Pro, Focusrite VRM Box, Komplete 10 Ultimate, 2012 American Telecaster!
|
ChrisX
Max Output Level: -88 dBFS
- Total Posts : 128
- Joined: 2013/07/02 17:53:18
- Location: Philadelphia PA.
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/02 19:46:11
(permalink)
I can't see it in the list. I only have my sound card, and some busses (in this case) and definitely no sidechain input for the compressor. I tried to turn off the 64 bit double precision engine but still not showing up in the list . Somehow Sonar doesn't recognise the Sonitus compressor to be a sidechainable compressor...
|
scook
Forum Host
- Total Posts : 24146
- Joined: 2005/07/27 13:43:57
- Location: TX
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/02 20:01:41
(permalink)
It may be a limitation of X2 Essential. There is a limit of 5 sends and the Sonitus Compressor and Gate are not part of X2 Essential (at least according to the version comparison pdf)
|
RobertB
Max Output Level: 0 dBFS
- Total Posts : 11256
- Joined: 2005/11/19 23:40:50
- Location: Fort Worth, Texas
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/02 21:46:30
(permalink)

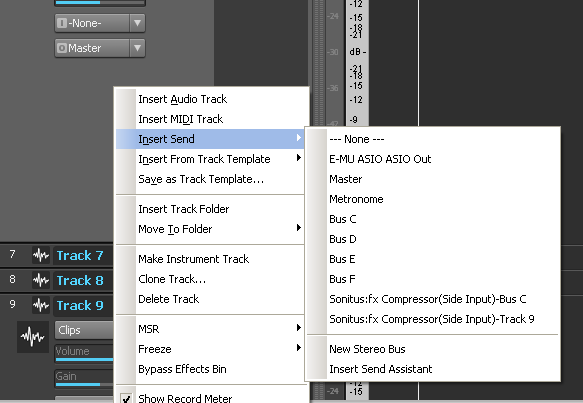

I believe that may be a misprint, Steve. X1E(and SHS6) had a limit of 5 sends per track.I can't imagine a 5 send per project limitation being imposed in X2E. As for side inputs being messy, they are pretty clear in X1E, as seen below. This may be an issue specific to X2E. I'm on an XP platform, so have not upgraded to X2. Sorry, Chris. I can verify that it works in earlier versions, but I can't check X2.
post edited by RobertB - 2013/07/02 22:00:39
My Soundclick Page SONAR Professional, X3eStudio,W7 64bit, AMD Athlon IIx4 2.8Ghz, 4GB RAM, 64bit, AKAI EIE Pro, Nektar Impact LX61,Alesis DM6,Alesis ControlPad,Yamaha MG10/2,Alesis M1Mk2 monitors,Samson Servo300,assorted guitars,Lava Lamp Shimozu-Kushiari or Bob
|
scook
Forum Host
- Total Posts : 24146
- Joined: 2005/07/27 13:43:57
- Location: TX
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/02 21:50:57
(permalink)
Sounds reasonable to me. That send list looks just like it does in X2 Producer. If I had the issue, I would contact tech support.
|
ChrisX
Max Output Level: -88 dBFS
- Total Posts : 128
- Joined: 2013/07/02 17:53:18
- Location: Philadelphia PA.
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/12 23:25:59
(permalink)
I sent an email to tech support but no answer yet... What I found out in the meantime is that for a sidechainable VST plug-in to show one sidechain input, the maximum used inputs from "VST plug-in properties" must be set to 4. If set to 2 the plug-in will not show any sidechain input, even if its capable of sidechaining... (thats: utilities>cakewalk plug-in manager>"select your vst">plug-in properties> set max used inputs) By default the "maximum used inputs" for my Sonitus Fx vst's ( for all compressor, gate etc..) is 2, and it cannot be changed ! If I set it to any other number it will not be saved... This means now that I'm still doing something wrong, there is a bug with my X2a or my SonitusFx compressor and gate are not sidechain capable... So what could be?
|
2:43AM
Max Output Level: -68 dBFS
- Total Posts : 1147
- Joined: 2013/06/24 07:59:49
- Location: PHX
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/13 00:25:47
(permalink)
You may have already tried this, but start a new project template and do it with just two audio tracks (one having the comp)...just to see if it works and somehow the other project itself is messed up. I vaguely remember having a similar issue like this a while back. It was as if the "behind-the-scenes" send routing was borked. I can't see a need to change all those VST settings to make it work. It should work right out of the box.
|
ChrisX
Max Output Level: -88 dBFS
- Total Posts : 128
- Joined: 2013/07/02 17:53:18
- Location: Philadelphia PA.
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/15 17:36:10
(permalink)
Problem partially solved... : I downloaded some free sidechain compressors I found online (Molot on 64bit and from Reaper ) and I was able to find their sidechain inputs in the send's list. Also they display 4 max inputs, and they work fine...for free ! This means that Sonar X2 Essential has a problem with recognising Sonitus compressor and gate as sidechainable (if they are indeed sidechainable as they say...) in both 32 bit and 64 bit versions. I'm not sure if this is a bug or some advanced settings related thing (coding?) but I reported it to Cakewalk, just in case... Thanks again for help!
|
2:43AM
Max Output Level: -68 dBFS
- Total Posts : 1147
- Joined: 2013/06/24 07:59:49
- Location: PHX
- Status: offline
Re: Sonitus compressor in X2 Essentil will not sidechain...
2013/07/15 19:41:58
(permalink)
Yeah, sounds like a bug. Thanks for submitting the report. Hopefully, it gets noticed.
|
