USB Foot Control

Just thought I'd share this one.
I have been using a X Keys Foot switch  http://xkeys.com/XkeysFootPedals/index.php

I use it to Advance playlist/start and stop playback in Win Amp. It can be programmed to any keystroke. Including I have a saving for Sonar with W/R and spacebar. Cool. Hands free transport control.

Anyhow it's 14 years old and started acting up. 5 years ago they sent me new mirco switches free! But now it's the hinge is binding so I find I'm stomping on it a few times to get it to work.
I almost ordered one for $129 but they punish Canadian customers with $80 shipping, (only $14 in the US) . plus they won't ship to my US depot which is less than a mile from me so I can deal with duty. I've e mail support to plead my case.

In the mean time I looked at other offerings.
I ordered a Cheapo double for $40 Can coming (free shipping) direct from China.
https://www.amazon.ca/YobangSecurity-Customized-Control-Keyboard-Action/dp/B073GT43RH/ref=sr_1_15?ie=UTF8&qid=1520466665&sr=8-15&keywords=pc+usb+foot+switch+keyboard+pedal


It won't last but until I hear back from X Keys I needed something to get me by.

But then I stumbled on this and it has me very exited as this solves a few issues with USB foot switches.

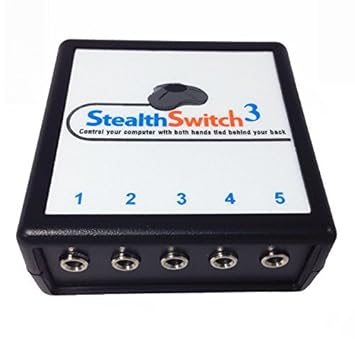

First it uses 5 switches, and it can use any foot switch with a 1/4" jack, something I already own, cheap to by and easily replace if it wares out.
This also allows for custom placement of the foot switches on the already overcrowded floor around my mike stand.
The box itself can be put at table height in my rack box.
https://www.amazon.ca/StealthSwitch3-USB-Foot-Controller-Programmable/dp/B00NUFCR9Y


The reason I'm sharing is not only for live performers looking for hand free operation of anything you can imagine in a PC. ( or tablet)  but for in the studio controlling your DAW with your feet is handy for when you need your hands on your instrument.
The sky is the limit on how you can program these foot switches to do any keystroke or even mouse clicks. It's a little pricey compared to others but it would seem it would last forever or until an unsupported OS came along.

I use Win Amp for playback and 3 switches has been mostly all I need. But with 5 I could say add volume up and down or Playlist back one song and Pause.








Johnny V
Cakelab
Focusrite 6i61st - Tascam us1641.
3 Desktops and 3 Laptops W7 and W10
 http://www.cactusmusic.ca/
My Sonar Tutorial on using MIDI
http://www.cactusmusic.ca/Sonarmidi.htm


#1
Kamikaze
Max Output Level: -48.5 dBFS
  • Total Posts : 2672
  • Joined: 2015/01/15 21:38:59
  • Location: Da Nang, Vietnam
  • Status: offline
Re: USB Foot Control 2018/03/08 00:48:46 (permalink)
I've wondered abut using this as a footswitch


16 is a bit much, and getting your toe t the right one would be tricky.

However, cutting these int hemispheres you could stick them alternating to top and bottom rows.





#2
tunedeaf
Max Output Level: -90 dBFS
  • Total Posts : 20
  • Joined: 2006/09/23 12:47:29
  • Status: offline
Re: USB Foot Control 2018/03/08 16:25:56 (permalink)

Sonar Platinum, Home Built: Win10x64, Asus Maximus VII, I7-4790K, ASUS GTX 1050, 16GB, Boot: 128GB Plextor M.2, Apps: 250GB 960EVO, Project: 3 TB Raid 1 w/60GB SSD RST Cache, RME Multiface II-HDSPe, A&H GL2200, Frontier Tranzport, Midisport 8x8, Akai Advance 61, Roland GI-20, Godin LGX-SA, Godin Session Tripleplay.

#3
Cactus Music
Max Output Level: 0 dBFS
  • Total Posts : 8149
  • Joined: 2004/02/09 21:34:04
  • Status: offline
Re: USB Foot Control 2018/03/09 23:19:34 (permalink)
tunedeaf
Bit pricey.

https://xtempozone.com/





If it was hardwired I might pay that much. It looks well made. I could find a use for the extra pedals like controlling my Blackstar Amp software.
Blue tooth is a PITA as everything I own that uses it always takes a few tries to pair it up. It never seems to be stable.  I see it comes with software which is important and it is made in the USA like the X Keys. .
Most of the Chinese foot switches have super funky software that you download and it's like it was written for XP so it just barley works. You program the foot switch and it has a static memory and you only do this once and it will always send the same keystroke, even when hooked to a different computer.

Johnny V
Cakelab
Focusrite 6i61st - Tascam us1641.
3 Desktops and 3 Laptops W7 and W10
 http://www.cactusmusic.ca/
My Sonar Tutorial on using MIDI
http://www.cactusmusic.ca/Sonarmidi.htm


#4
azslow3
Max Output Level: -44.5 dBFS
  • Total Posts : 3075
  • Joined: 2012/06/22 19:27:51
  • Location: Germany
  • Status: offline
Re: USB Foot Control 2018/03/10 12:13:58 (permalink) ☄ Helpfulby robert_e_bone 2018/05/24 14:06:19
After several years, I still see that the only affordable multi-purpose foot controller is FCB1010...


Sonar 8LE -> Platinum infinity, REAPER, Windows 10 pro
GA-EP35-DS3L, E7500, 4GB, GTX 1050 Ti, 2x500GB
RME Babyface Pro (M-Audio Audiophile Firewire/410, VS-20), Kawai CN43, TD-11, Roland A500S, Akai MPK Mini, Keystation Pro, etc.
www.azslow.com - Control Surface Integration Platform for SONAR
#5
eric_peterson
Max Output Level: -68 dBFS
  • Total Posts : 1103
  • Joined: 2003/11/25 10:24:05
  • Location: The jungles of Oregon ...
  • Status: offline
Re: USB Foot Control 2018/03/10 14:39:52 (permalink)
I’ve been using the Stealth Switch for years now, great product! I have a couple of heavy duty pedals (usually used for keyboard sustain, etc.) that I use to flip pages in my PDF lyrics binder when we play out.
post edited by eric_peterson - 2018/03/10 15:59:24
#6
TheMaartian
Max Output Level: -49 dBFS
  • Total Posts : 2624
  • Joined: 2015/05/21 18:30:52
  • Location: Flagstaff, AZ
  • Status: offline
Re: USB Foot Control 2018/03/10 15:33:24 (permalink)
Here's the link to Amazon US: https://www.amazon.com/StealthSwitch3-USB-Foot-Controller-Programmable/dp/B00NUFCR9Y/

Current price is US$74.85. That's a LOT less.

Saved to wishlist. Thanks for sleuthing and sharing!

Intel i7 3.4GHz, 16 GB RAM, 2 TB HD Win10 Home 64-bit Tascam US-16x08
Studio One 4 Pro NotionMelodyne 4 Studio SpectraLayers Pro 4 Guitar Pro 7
PreSonus FaderPort Nektar P6 M-Audio BX8 D2 Beyerdynamic DT 880 Pro
NI K9U XLN AK, AD2 AAS VS-2, GS-2, VA-2, EP-4, CP-2, OD Toontrack SD3, EZK
#7
Cactus Music
Max Output Level: 0 dBFS
  • Total Posts : 8149
  • Joined: 2004/02/09 21:34:04
  • Status: offline
Re: USB Foot Control 2018/03/11 16:51:40 (permalink)
TheMaartian
Here's the link to Amazon US: https://www.amazon.com/StealthSwitch3-USB-Foot-Controller-Programmable/dp/B00NUFCR9Y/

Current price is US$74.85. That's a LOT less.

Saved to wishlist. Thanks for sleuthing and sharing!





Wow, That's a way better deal.. Going to order that now.

Done,, $80.72  free shipping.
Now I'll look into buying a few more foot pedals. I have 2 very old Roland pedals.

Johnny V
Cakelab
Focusrite 6i61st - Tascam us1641.
3 Desktops and 3 Laptops W7 and W10
 http://www.cactusmusic.ca/
My Sonar Tutorial on using MIDI
http://www.cactusmusic.ca/Sonarmidi.htm


#8
Cactus Music
Max Output Level: 0 dBFS
  • Total Posts : 8149
  • Joined: 2004/02/09 21:34:04
  • Status: offline
Re: USB Foot Control 2018/04/08 18:19:56 (permalink)
Just a follow up on this.
I ended up ordering way too many foot switches,, but I've kind of put them all to use for Live performance and in the Studio.

First the BIG YELLOW dual USB  came direct from China. It uses the same software which has now been updated for many of the cheap Chinese foot-switches. Same as the 3 pedal one behind it.
Was easy to program it and the assignments stay with the pedal so you can move it to any computer and it will stay the same. I have assigned "R" and "SPACEBAR" and use it for hands free recording in Sonar. Highly recommend this one. Very solid,cheap, works.

I then received the Stealth and it was surprisingly small! And the jacks are all 1/8" not 1/4". My fault , didn't read the fine print. I have a few Roland sustain/drum machine pedals and I ordered 3 more 1/4" based pedals. Those I'm now using to toggle my Lexicon and Mixers effects off so I can take between songs. I use the Lexicon for general reverb/delay and the mixer only for special long delay.
I had to order the proper foot pedals from Stealth and now have those. I only bought 4. A fifth I guess would be Pause.

You can see it's getting pretty crowded down there,, and I also have a few Stomp boxes not shown! The Big Yellow is not used live, I just put it there to take the picture.





post edited by Cactus Music - 2018/04/09 02:28:04

Johnny V
Cakelab
Focusrite 6i61st - Tascam us1641.
3 Desktops and 3 Laptops W7 and W10
 http://www.cactusmusic.ca/
My Sonar Tutorial on using MIDI
http://www.cactusmusic.ca/Sonarmidi.htm


#9
azslow3
Max Output Level: -44.5 dBFS
  • Total Posts : 3075
  • Joined: 2012/06/22 19:27:51
  • Location: Germany
  • Status: offline
Re: USB Foot Control 2018/04/08 18:45:31 (permalink)
Looking at your picture, I have remembered an instrument which can be played by foot... and:

A bit pricey, but I guess the quality should be good. 17 velocity sensitive pedals in one package

Sonar 8LE -> Platinum infinity, REAPER, Windows 10 pro
GA-EP35-DS3L, E7500, 4GB, GTX 1050 Ti, 2x500GB
RME Babyface Pro (M-Audio Audiophile Firewire/410, VS-20), Kawai CN43, TD-11, Roland A500S, Akai MPK Mini, Keystation Pro, etc.
www.azslow.com - Control Surface Integration Platform for SONAR
#10
Cactus Music
Max Output Level: 0 dBFS
  • Total Posts : 8149
  • Joined: 2004/02/09 21:34:04
  • Status: offline
Re: USB Foot Control 2018/04/09 02:32:53 (permalink)
There is a local guy who used to use something like that and a Yamaha drum machine as a solo act. He did hundreds of gigs as a full time performer back in the 80's. Later and to this day he uses a bass player. I backed him a few times and he didn't like it when I walked a bass line. " Root five" he would yell at me! He was so used to his plodding bass lines.

Johnny V
Cakelab
Focusrite 6i61st - Tascam us1641.
3 Desktops and 3 Laptops W7 and W10
 http://www.cactusmusic.ca/
My Sonar Tutorial on using MIDI
http://www.cactusmusic.ca/Sonarmidi.htm


#11
soens
Max Output Level: -26 dBFS
  • Total Posts : 4942
  • Joined: 2005/09/16 03:19:55
  • Location: Location: Location
  • Status: offline
Re: USB Foot Control 2018/04/26 19:00:33 (permalink)
tunedeaf
Bit pricey.

https://xtempozone.com/



Curious how it can "Control your DAW up to 100 feet away." when Bluetooth only goes 30ft.
#12
sock monkey
Max Output Level: -82 dBFS
  • Total Posts : 441
  • Joined: 2011/11/06 12:12:08
  • Location: Tree Top Studios
  • Status: offline
Re: USB Foot Control 2018/04/26 22:59:39 (permalink)
$300 and it's made out of Plastic? Myself wireless is to be avoided when the word "bulletproof"  is involved.

Sonar X3e Studio- Home Studio Free- W7 64bit-
Singer Songwriter, Solo Performer, Acoustic Duo and semi pro Sound Monkey.

#13
tlw
Max Output Level: -50.5 dBFS
  • Total Posts : 2466
  • Joined: 2008/10/11 22:06:32
  • Location: West Midlands, UK
  • Status: offline
Re: USB Foot Control 2018/04/26 23:06:01 (permalink)
Not all Bluetooth is the same.

Class 1 Bluetooth has a range of up to 100 metres (330 feet).

The device in your link is claimed to be Bluetooth 4 LE. The maximum range depends on the devices concerned, but the Bluetooth SIG suggests Bluetooth 4 should have a range of at least 200 feet.

Sonar Platinum 64bit, Windows 8.1 Pro 64bit, I7 3770K Ivybridge, 16GB Ram, Gigabyte Z77-D3H m/board,
ATI 7750 graphics+ 1GB RAM, 2xIntel 520 series 220GB SSDs, 1 TB Samsung F3 + 1 TB WD HDDs, Seasonic fanless 460W psu, RME Fireface UFX, Focusrite Octopre.
Assorted real synths, guitars, mandolins, diatonic accordions, percussion, fx and other stuff.
#14
soens
Max Output Level: -26 dBFS
  • Total Posts : 4942
  • Joined: 2005/09/16 03:19:55
  • Location: Location: Location
  • Status: offline
Re: USB Foot Control 2018/05/24 08:26:17 (permalink)
Thanks, didn't know that. Looks like it depends on TX's power level/antenna length. Most mobile/battery powered devices are probably class 2.

Class 1 = <30ft
Class 2 = 30-33ft
Class 3 = 328ft to 1 mile (modded)

https://www.sans.edu/cyber-research/security-laboratory/article/bluetooth
post edited by soens - 2018/05/24 08:52:05
#15
robert_e_bone
Moderator
  • Total Posts : 8930
  • Joined: 2007/12/26 22:09:28
  • Location: Palatine, IL
  • Status: offline
Re: USB Foot Control 2018/05/24 14:09:53 (permalink)
azslow3
After several years, I still see that the only affordable multi-purpose foot controller is FCB1010...



I too use the FCB1010 - have two of them.  $140 new and built like a tank.  Can send up to 5 midi messages with 1 press.

Bob Bone

Wisdom is a giant accumulation of "DOH!"

Sonar: Platinum (x64), X3 (x64)
Audio Interfaces: AudioBox 1818VSL, Steinberg UR-22
Computers: 1) i7-2600 k, 32 GB RAM, Windows 8.1 Pro x64 & 2) AMD A-10 7850 32 GB RAM Windows 10 Pro x64
Soft Synths: NI Komplete 8 Ultimate, Arturia V Collection, many others
MIDI Controllers: M-Audio Axiom Pro 61, Keystation 88es
Settings: 24-Bit, Sample Rate 48k, ASIO Buffer Size 128, Total Round Trip Latency 9.7 ms
#16
Cactus Music
Max Output Level: 0 dBFS
  • Total Posts : 8149
  • Joined: 2004/02/09 21:34:04
  • Status: offline
Re: USB Foot Control 2018/05/24 22:25:05 (permalink)
Just a follow up to this. So far the Stealth has performed flawlessly after a dozen gigs with it.
The best part is it's not fussy about which computer  or USB port used. Just always works.
