Multiple Instances of Dim. Pro in Drum Mgr

Author
Post
Essentials Only Full Version
King Conga
Max Output Level: -80 dBFS
  • Total Posts : 519
  • Joined: 2003/11/10 19:59:07
  • Location: Garner, NC
  • Status: offline
2013/04/30 22:46:33 (permalink)

Multiple Instances of Dim. Pro in Drum Mgr

I've already posted this in the Software Instruments forum, but I figured there would be many more eyes in this forum that might know the answer. Also, I'm actually an 8.5.3 user. So, I'm trying to use the Drum Mgr to use both the sounds on my ext keyboard, and several instances of Dimension Pro 1.5. It works fine for the 1st instance, but not for the 2nd. The 2nd setup is just like the 1st. I recorded a kick (36), X-stick (37), snare (38) where the kick was using the 1st instance, and I tried both other voices on both the ext. keyboard, AND the 2nd instance of Dim Pro, but only the ext kybd would work. I haven't tried using separate tracks because I want to get the Drum Mgr working. Thanks, KC

Mobo:ASUS M5A97 EVO/CPU:AMD FX-6200
WD SSD 250Gig
Video:AMD Radeon HD 6670, 2Gig RAM Sys: RAM:16Gig/120Gig SSD, 1TByte
O/S: Win10 Pro 64-Bit
PreSonus 1818VSL/Alesis Fusion 8HD/Presonus FaderPort8, JBL LSR308
Sonar Plat/Aud. CS6/BIAB2019/ST3.7/SO3.5
#1

7 Replies Related Threads
    King Conga
    Max Output Level: -80 dBFS
    • Total Posts : 519
    • Joined: 2003/11/10 19:59:07
    • Location: Garner, NC
    • Status: offline
    Re:Multiple Instances of Dim. Pro in Drum Mgr 2013/05/05 19:15:18 (permalink)
    I just find it hard to believe that NO ONE in the entire Cakewalk community that has NEVER tried to use Dim Pro 1.5 in the Drum Map Mgr. ALL I'm trying to find out is why I am unable to use more than 1 instance, since the synth will only work 1 instance per channel. That's something else I don't get, is why would Cakewalk dump so much $$$ into developing such an instrument, and not have it support multiple channels..i.e. like V-Sampler, or SampleTank 2L. Obviously, they didn't ask me.

    Mobo:ASUS M5A97 EVO/CPU:AMD FX-6200
    WD SSD 250Gig
    Video:AMD Radeon HD 6670, 2Gig RAM Sys: RAM:16Gig/120Gig SSD, 1TByte
    O/S: Win10 Pro 64-Bit
    PreSonus 1818VSL/Alesis Fusion 8HD/Presonus FaderPort8, JBL LSR308
    Sonar Plat/Aud. CS6/BIAB2019/ST3.7/SO3.5
    #2
    AT
    Max Output Level: 0 dBFS
    • Total Posts : 10654
    • Joined: 2004/01/09 10:42:46
    • Location: TeXaS
    • Status: offline
    Re:Multiple Instances of Dim. Pro in Drum Mgr 2013/05/05 22:33:14 (permalink)
    1 Instance, 4 voices on midi channels.  It is a sample playback instrument, not drum machine.  Wishing it was something it isn't won't change what it is.

    @

    https://soundcloud.com/a-pleasure-dome
    http://www.bnoir-film.com/

    there came forth little children out of the city, and mocked him, and said unto him, Go up, thou bald head; go up, thou bald head.
    24 And he turned back, and looked on them, and cursed them in the name of the Lord. And there came forth two she bears out of the wood, and tare forty and two children of them.
    #3
    Kev999
    Max Output Level: -36 dBFS
    • Total Posts : 3922
    • Joined: 2007/05/01 14:22:54
    • Location: Victoria, Australia
    • Status: offline
    Re:Multiple Instances of Dim. Pro in Drum Mgr 2013/05/06 03:10:25 (permalink)
    King Conga

    I just find it hard to believe that NO ONE in the entire Cakewalk community that has NEVER tried to use Dim Pro 1.5 in the Drum Map Mgr. ALL I'm trying to find out is why I am unable to use more than 1 instance...
    You can use as many instances as you wish of any softsynth (including DimPro) in Drum Map Manager.  Maybe you could explain in detail how you are trying to set this up.  I didn't understand "The 2nd setup is just like the 1st" or " I haven't tried using separate tracks".

    SonarPlatinum∞(22.11.0.111)|Mixbus32C(4.3.19)|DigitalPerformer(9.5.1)|Reaper(5.77)
    FractalDesign:DefineR5|i7-6850k@4.1GHz|16GB@2666MHz-DDR4|MSI:GamingProCarbonX99a|Matrox:M9148(x2)|UAD2solo(6.5.2)|W7Ult-x64-SP1
    Audient:iD22+ASP800|KRK:VXT6|+various-outboard-gear|+guitars&basses, etc.
    Having fun at work lately
    #4
    Bristol_Jonesey
    Max Output Level: 0 dBFS
    • Total Posts : 16775
    • Joined: 2007/10/08 15:41:17
    • Location: Bristol, UK
    • Status: offline
    Re:Multiple Instances of Dim. Pro in Drum Mgr 2013/05/06 04:19:28 (permalink)
    Wouldn't each instance of DP need to be set to a different Midi channel?

    CbB, Platinum, 64 bit throughout
    Custom built i7 3930, 32Gb RAM, 2 x 1Tb Internal HDD, 1 x 1TB system SSD (Win 7), 1 x 500Gb system SSD (Win 10), 2 x 1Tb External HDD's, Dual boot Win 7 & Win 10 64 Bit, Saffire Pro 26, ISA One, Adam P11A,
    #5
    Kev999
    Max Output Level: -36 dBFS
    • Total Posts : 3922
    • Joined: 2007/05/01 14:22:54
    • Location: Victoria, Australia
    • Status: offline
    Re:Multiple Instances of Dim. Pro in Drum Mgr 2013/05/06 06:05:24 (permalink)
    Wouldn't each instance of DP need to be set to a different Midi channel?
    Not necessary.  Same channel, different notes to different softsynths.  Each softsynth (or each instance of DimPro or whatever) should have its own audio/synth track (not a simple instrument track).  Only one midi track is required, with it's output set to the drum map.


    [Edited previous mistake]

    SonarPlatinum∞(22.11.0.111)|Mixbus32C(4.3.19)|DigitalPerformer(9.5.1)|Reaper(5.77)
    FractalDesign:DefineR5|i7-6850k@4.1GHz|16GB@2666MHz-DDR4|MSI:GamingProCarbonX99a|Matrox:M9148(x2)|UAD2solo(6.5.2)|W7Ult-x64-SP1
    Audient:iD22+ASP800|KRK:VXT6|+various-outboard-gear|+guitars&basses, etc.
    Having fun at work lately
    #6
    RobertB
    Max Output Level: 0 dBFS
    • Total Posts : 11256
    • Joined: 2005/11/19 23:40:50
    • Location: Fort Worth, Texas
    • Status: offline
    Re:Multiple Instances of Dim. Pro in Drum Mgr 2013/05/07 00:17:53 (permalink)
    That's right. Specifying the destination synth is primary.
    Channels come more into play when you are using something like TTS-1, Sample Tank, or Proteus.
    With these, the channel will specify the instrument or part that the MIDI data is being directed to.

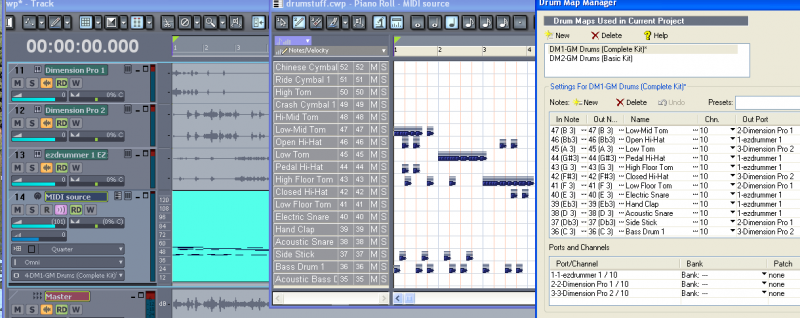

    In the following screen shot, all synths are receiving on channel 10.
    But the notes are being distributed properly, as the waveform shows.
    KC, does this drum map look like what you are trying to do?



    My Soundclick Page
    SONAR Professional, X3eStudio,W7 64bit, AMD Athlon IIx4 2.8Ghz, 4GB RAM, 64bit, AKAI EIE Pro, Nektar Impact LX61,Alesis DM6,Alesis ControlPad,Yamaha MG10/2,Alesis M1Mk2 monitors,Samson Servo300,assorted guitars,Lava Lamp

    Shimozu-Kushiari or Bob
    #7
    Bristol_Jonesey
    Max Output Level: 0 dBFS
    • Total Posts : 16775
    • Joined: 2007/10/08 15:41:17
    • Location: Bristol, UK
    • Status: offline
    Re:Multiple Instances of Dim. Pro in Drum Mgr 2013/05/07 02:53:37 (permalink)
    Your image serves as a reminder that the OP needs to check that the Output Port in the drum map needs to point to the correct instance of DimPro for this to work correctly

    CbB, Platinum, 64 bit throughout
    Custom built i7 3930, 32Gb RAM, 2 x 1Tb Internal HDD, 1 x 1TB system SSD (Win 7), 1 x 500Gb system SSD (Win 10), 2 x 1Tb External HDD's, Dual boot Win 7 & Win 10 64 Bit, Saffire Pro 26, ISA One, Adam P11A,
    #8
